Step 0 — Requirements
- USB-C cable (Apple TV 4G only) / Ethernet cable (Apple TV 4G and Apple TV 5G (4K)).
- Apple Configurator 2 installed on your Mac.
Step 0.5 — Pairing your Device via Ethernet — only for users of Ethernet pairing
- Your Mac and Apple TV are connected to the same network.
- Apple TV is connected to the network using Ethernet.
- The device should be on and displaying “Pair Your Remote” screen. To do so start with an Apple TV that hasn’t been set up, or erases it first. To erase go to Settings > System > Reset.
- On your Mac, launch Apple Configurator.
- In your menu bar, open Apple Configurator 2 > Paired Devices.
- Select your Apple TV in the Paired Devices list, then click Pair.
- On your Mac, enter the 6 digit pin that appears on the screen of your Apple TV.
- Close Paired Devices window.
Step 1 — Enable supervised mode on your Apple TV
Warning! This will erase your device!
1. Launch Apple Configurator:
2. Connect your device to Mac via USB-C cable (skip if using Ethernet pairing):
3. Select your device.

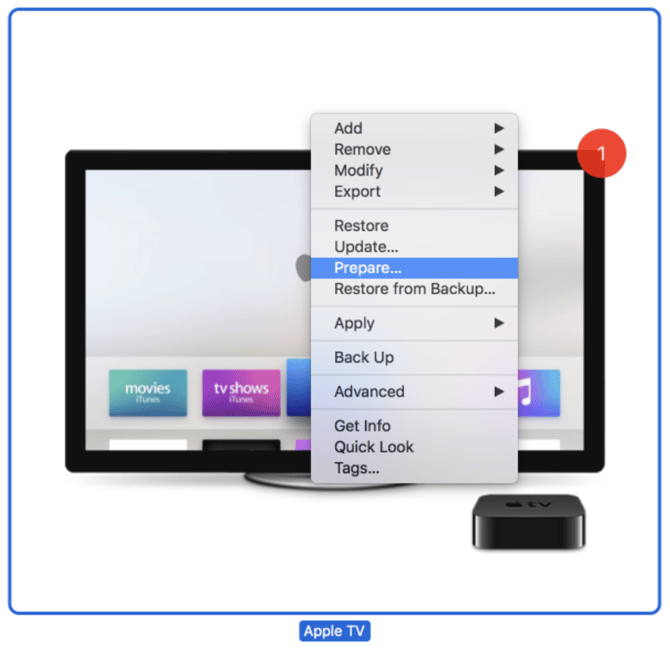

4. Click ‘Prepare’ button:
8. If your organization is a member of Apple Device Enrollment program, log in here, if not, click ‘Skip’:
14. If you get a message saying the device is already prepared, click ‘Erase’ to erase and prepare device again.

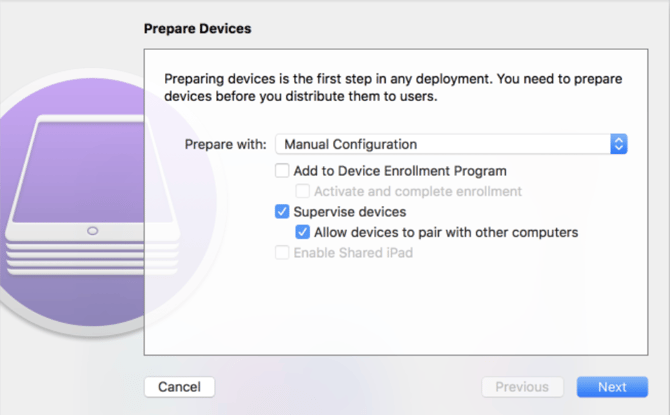

5. Click ‘Next’ button:
6. Click ‘Next’ button, again:
7. If you have already created your organization, select it here, if not, go ahead and select “New Organization”.
8. If your organization is a member of Apple Device Enrollment program, log in here, if not, click ‘Skip’:
9. Enter your organization name, click ‘Next’:
10. Select ‘Generate a new supervision identity’ and click ‘Next’:
11. Select the steps that would be available in Setup Assistant, if you’re using your Apple TV only for Digital Signage, the following settings would be OK.
12. Click ‘Prepare’:
14. If you get a message saying the device is already prepared, click ‘Erase’ to erase and prepare device again.
Step 2 – Set up your device

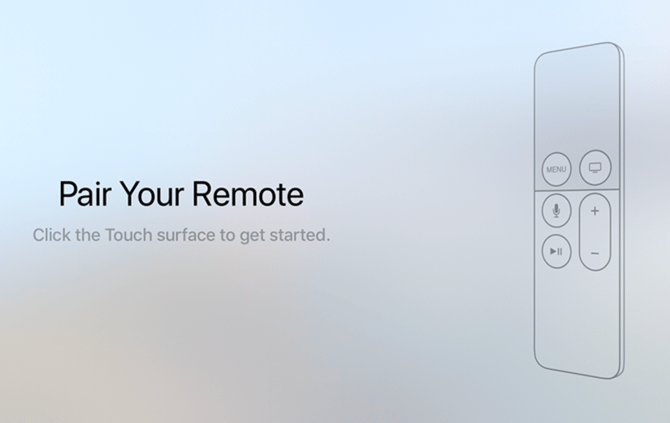

1. When the device is restarted, pair your remote by tapping on it.
2. Connect to your Wi-Fi network (if not using wired connection).

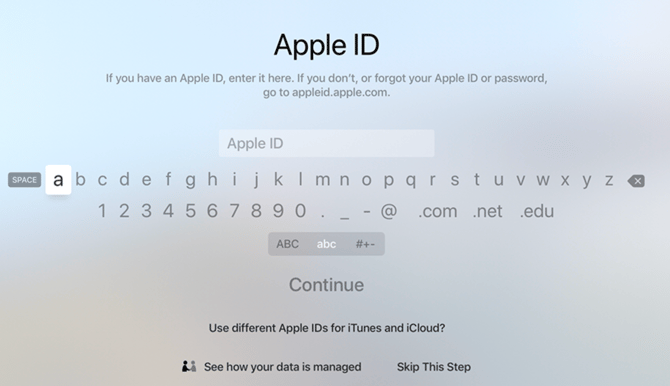

3. Login in to your Apple ID (pro-tip: At this point, you can already use Apple TV Remote for faster credential input).
Step 3 – Install Kitcast
1. Open App Store on your device:
2. Go to ‘Search’ tab:
3. Enter KITCAST in the search field:
4. Tap on the Kitcast icon:
5. Tap ‘Install’ (after that you will be able to activate Apple TV Kiosk Mode).
Step 4 – Enable Single App Mode on your Apple TV
1. Go back to Apple Configurator 2 on your Mac, you should see your newly prepared device under ‘Supervised’ tab.

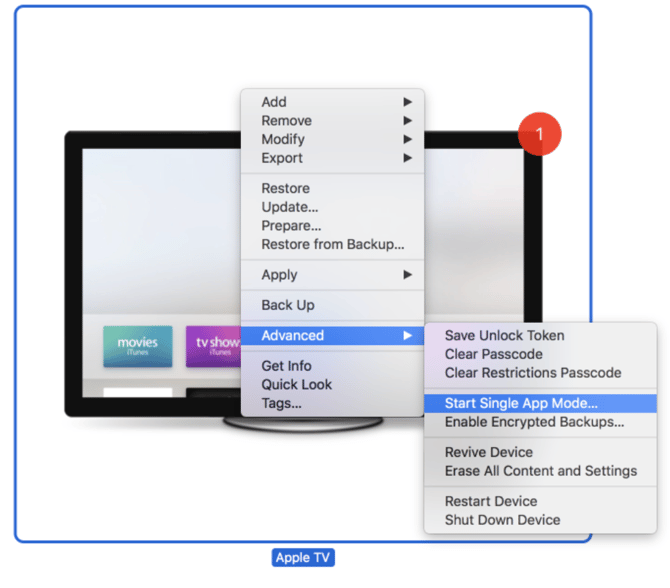

2. Right-click on your Device and select ‘Advanced > Start Single App Mode’:
3. In the next window, select Kitcast from the list and click ‘Select App’:
4. Apple TV screen will flicker and Kitcast will start, you’re done.
Step 5 (Optional) – Streamlining the process
If you find this process too cumbersome or labor-intensive, e.g. when you have more than a couple of devices, we provide integration with MDM providers (like JAMF) and support for mass deployment, allowing you to bypass the installation from App Store and the Setup Code phase altogether.
So if you’d like that, please contact us, we’re glad to help.
